WALKER TITAN SF 4x5



Deposits are now being taken for the final 10 Titan SF 4x5 Cameras.  This model will then cease to be produced.  If you would like to place an order for one of the final 10 and leave a deposit, please contact Mike on mike@walkercameras.com

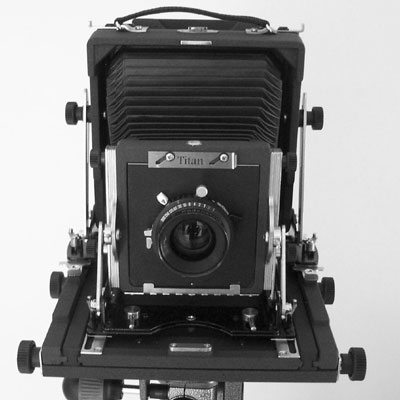

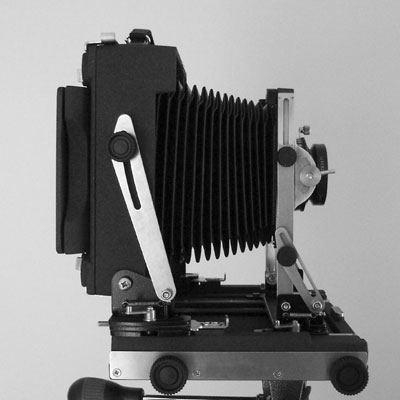

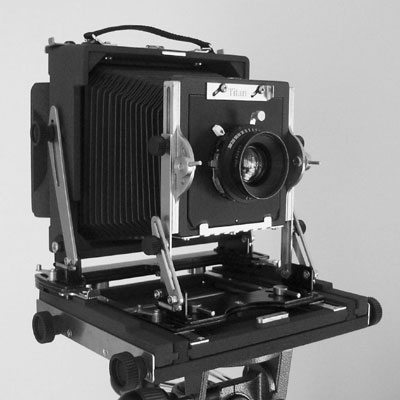

The Walker Titan SF 4x5 Field camera is the world’s first large format mould injected plastic camera; it is a combination of traditional field camera design with modern materials and manufacturing techniques.

The body is made from injection moulded ABS, finished with a very durable non-slip coating. All fittings are made from stainless steel. This combination of materials makes the camera exceptionally durable and able to withstand extreme natural elements.

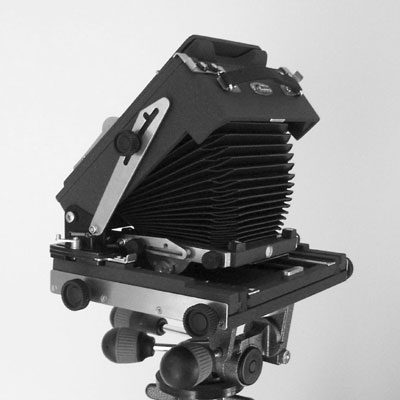

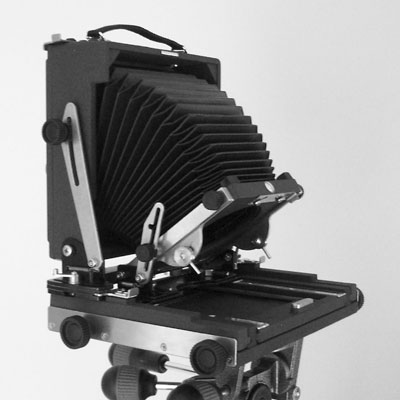

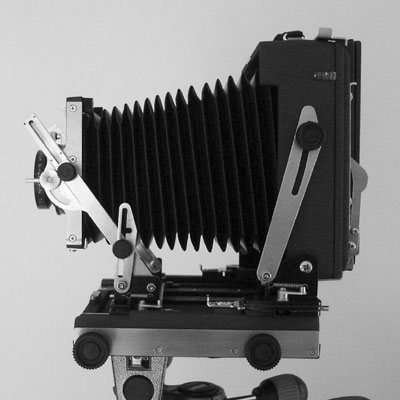

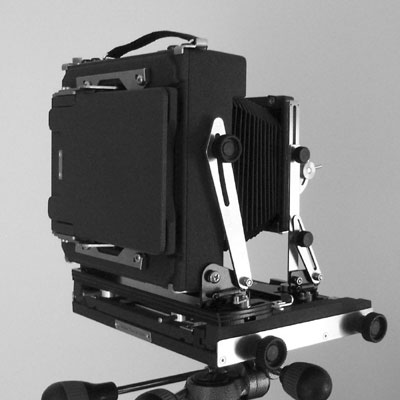

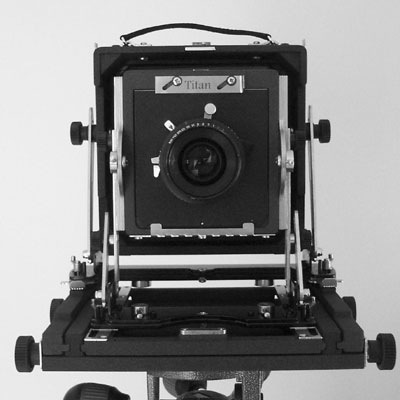

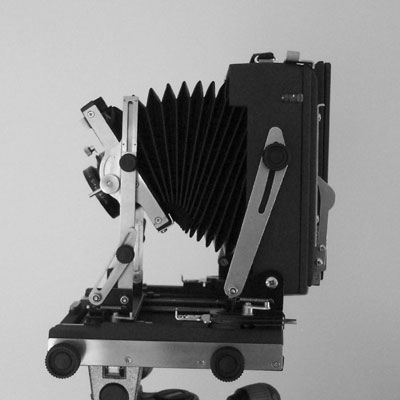

There are a full range of movements on both front and rear of the camera.  The front has rise and fall, tilt and swing are both on axis.  The rear has base tilt, axis swing, plus shift. The bellows are interchangeable.

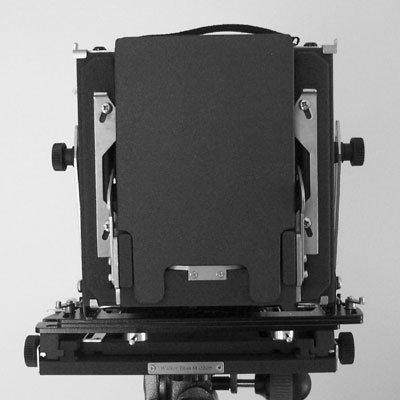

The International/Graflok back will accommodate all standard cut-film holders plus a number of roll film holders.



The focussing screen is a one piece acrylic screen with etched surface on one side and Fresnel on the other, with a separate cover glass which has a grid pattern plus markings for roll film.



Read a detailed review of the Titan SF 4x5



Walker Titan SF 4x5 Specifications
Maximum Bellows Extension with standard bellows
430mm + 43mm with movements
Maximum Bellows Extension with wide-angle bellows
150mm
Front Tilt (either direction from centre position)
35°
Rear Tilt (backwards)
20°
Rear Tilt (forwards)
Limited only by bellows
Front Swing (either direction from centre position)
20°
Rear Swing (either direction from centre position)
15°
Rear Cross Movement (either direction from centre position)
18°
Front Vertical movement
86mm (+50mm, -36mm)
Shortest focal length with flat lens board
65mm
Shortest focal length with recessed lens board
47mm
Lens Panel (Linhof / Wista type)
97mm x 99mm
Back
International / Grafolk
Overall Dimensions (including knobs)
260mm x 200mm x 123mm
Weight
2.9kg / 6.4lbs
